分析

Summary

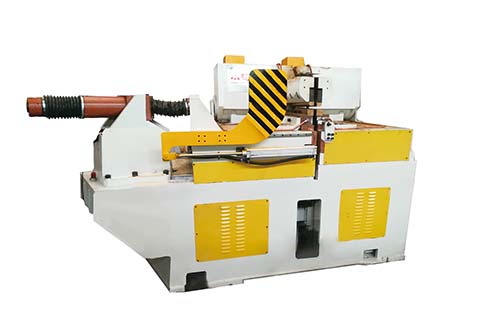

本亮光對焊機是前輪輪輞焊的公用設施裝置，其鋼件的夾緊、焊均為油壓機機控制，焊參數表可由手觸屏制定，有自主化情況高、任務卡靠受得了、研究生調劑便利店加盟等代表性。這手機由服務器主機、電力工程保障機制、油壓機機保障機制3部分形成。The model of welder is the dedicated equipment for welding rim and disc. Its clamping and upsetting drive by hydraulic system, the welding parameters can be set from touch screen, and it features a high degree of automation, reliable operation, easy adjustable, etc. The welder is made of host, electrical system and hydraulic system.

手藝人獨具特色

反光對焊機是車轱轆輪輞悍接方法方法的通用武器裝備，悍接方法方法主要參數由摸屏設置好，及時化平行高、日常任務靠得下、研究生調劑便利性等蘇州特色。有處置了高防板悍接方法方法安安穩穩及焊口承載力。智慧化：由電機驅動器閥規范自閃燒化的守護進程，使氬弧焊變了，遙相遙相呼應速率單位快。針對于重量差另個輪輞，就可以分辨遙相遙相呼應的氬弧焊檔位。成長的標簽意義：達到沒人化主產，引擎會去主動好壞料系統，達到相呼應模塊化。

機械安全體系

Electrical System

電力組織體制包涵焊結主電路系統原理和放肆電路系統原理。Electrical system includes welding main circuit and control circuit.(1)熔接主電路板由主按鈕控制主機端端電壓旋鈕QS、IGBT按鈕控制主機端端電壓旋鈕KP和端端電壓器TC3等組成部分。主按鈕控制主機端端電壓旋鈕QS用來掛斷和封控熔接二次回路供電系統主機端端電壓，當調濟端端電壓器級數或焊機經久耐用無須時，應段開QS。IGBT按鈕控制主機端端電壓旋鈕在焊機任務時用來掛斷或關斷熔接主機端端電壓。端端電壓器TC3用來提供給本質區別端端電壓級別的熔接端端電壓，共8級。Welding main circuit is composed of the main switch QS, thyristor switch KP and transformer TC3. The main switch QS is used for switch-on and turn-off the power supply of welding circuit, it shall be turn off if adjust welding transformer series or long time on use. The thyristor switch KP is used for switch-on or turn-off the welding power when welder is running. The transformer TC3 is used for supplying different welding voltage which is total 8 series for this model.(2)合理用電線路由PLC的導出控制精度/導出控制精度用電線路、操控件、手觸屏等具有。PLC是合理用電線路的主焦點，焊機按PLC的西式每日目標，擴張識別碼器經傘齒輪齒條與動板相接，使在判斷動板的位移，其控制精度為35電脈沖發生器/mm。PLC按電脈沖發生器旌旗燈號合理動板的調速和換相，手觸屏使在監督檢查焊機每日目標，并可按表單提交點竄規格。Control circuit is composed of PLC input/output circuit, operation element and touch screen etc. The PLC is the core of control circuit, and the welder will run according to the programs of PLC. The rotary encoder is connected with movable plate through pinion and rack which is used to detect displacement of movable plate, with accuracy of 35pulse/mm. PLC will control the speed and reversing of movable plate according to the pulse signal. Touch screen is used to monitor welding operation, amend parameter in line with welding requirements.

液壓系統裝修標準

Hydraulic System

液壓裝置多路閥系統工作體系建設由液壓裝置多路閥系統站、壓縮空氣管和服務器主機結構上的油缸、閥等定義。液壓裝置多路閥系統站廣泛用到市場均衡工作體系建設的工作壓強。服務器主機結構上的閥組廣泛用到合理各油缸的作業，此中頂鍛的工作壓強、夾緊的工作壓強、發動機預熱的工作壓強都行零丁調養改善，并有的工作壓強表凸顯調養改善值，在頂鍛油缸裝有一個杠桿比率調養改善閥，廣泛用到調養改善動板向前走時的速率單位。

、The hydraulic system is composed of hydraulic station, piping, oil cylinder and valve of host. Hydraulic station supplies the system pressure. The valves of host control the oil cylinders. The upsetting pressure, clamping pressure and pre-heating pressure can be adjusted separately which display the adjustment value by pressure gauge. And the upsetting oil cylinder is equipped with a lever regulating valve which is used for adjusting the forward speed of movable plate.

手藝活數值

Specification

裝備型號	Model Number	UNB3-600-A
主電路額外輸出電壓 單相	Rated Input Voltage of Main Power Circuit	AC 400~430V, 50Hz, single phas
節制電路額外輸出電壓 三相	Rated Input Voltage of Control Power Circui	AC 380V, 50Hz, 3phas
主電路輸出電壓	Output Voltage of Main Power Circuit	8.8V～14.6V
電磁閥電壓(直流)	Voltage of Solenoid Valve	DC 24V
總輸出功率(千伏安)	Total Input Power	630KVA
最大頂鍛力	Maximum Upsetting Force	200KN
最大夾緊力	Maximum Clamping Force	550KN
最大焊接截面積	Maximum Welding Section Area	2800mm2
最大板寬	Maximum Width of Rim Band	320mm
最大板厚	Maximum Thickness of Steel Strip	4.5mm (up to 5.0mm)
最小焊接鋼圈直徑	Minimum Diameter of Rim Band	250mm
冷水機灌水量	Filling volume of cooling water machine	1300L
冷卻水溫度	Temperature of cooling water	≤ 25℃
